Large Animals

For The Ultimate Predator at AMNH, I made two Tyrannosaurs. Baby Bob is the name of the recently discovered 15 foot long, 4 year-old Tyrannosaurus Rex. Xiongguanlong, a 12 foot long tyrannosauroid, pre-dates T. rex by about 50 million years. Both of them are thought to have been feathered. I sculpted the head and appendages in clay, casting them in polyester and fiberglass. I welded sleeving steel armatures so that they can be broken down for travel, and coated them in spray insulation foam. After carving the musculature, I coated the bodies in more fiberglass and resin and continued with the detailing in epoxy. A specific, fine broom hair was chosen for the feathers and they were laboriously attached to the surface of the skin with a mixture of adhesives.

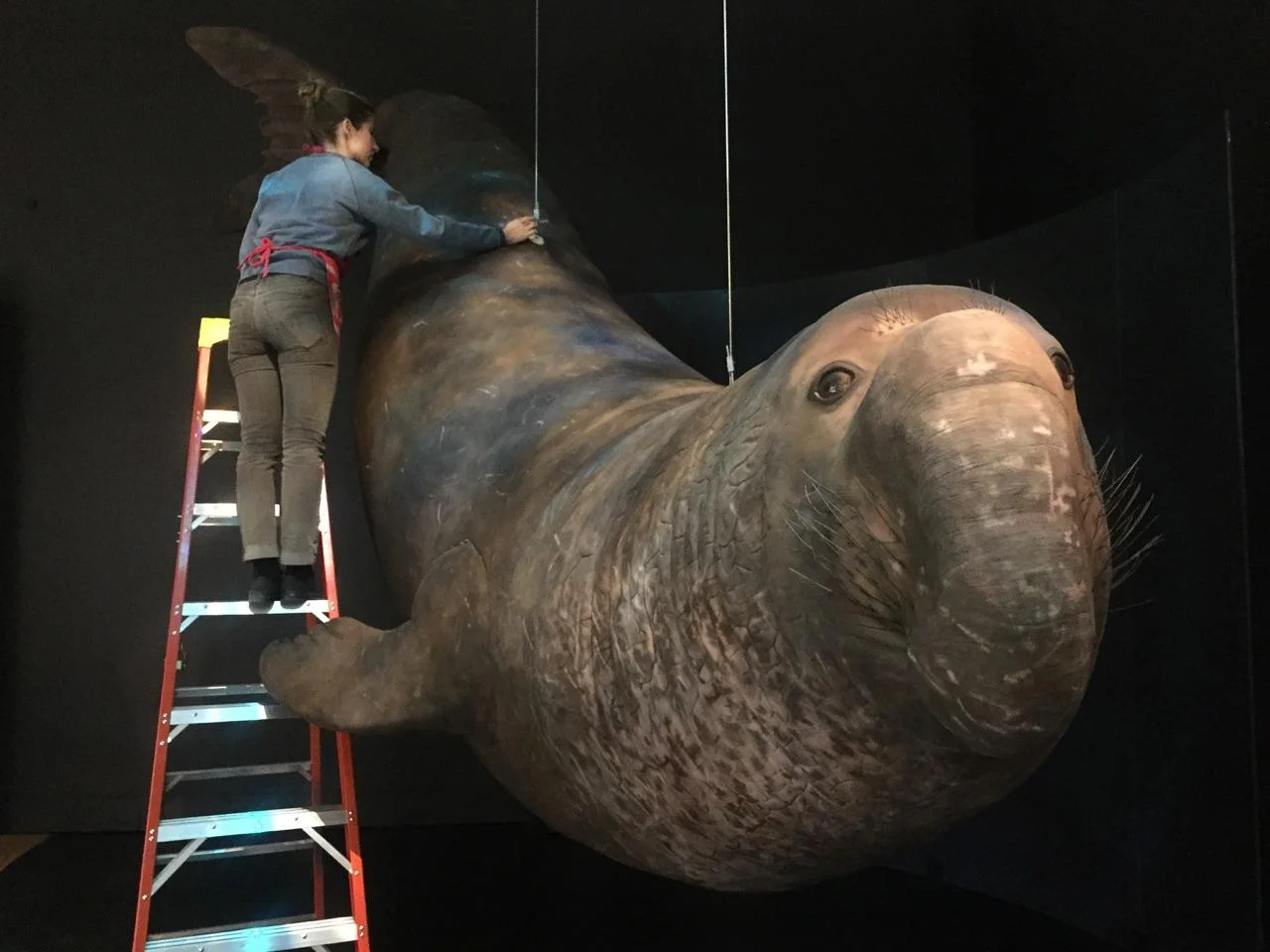

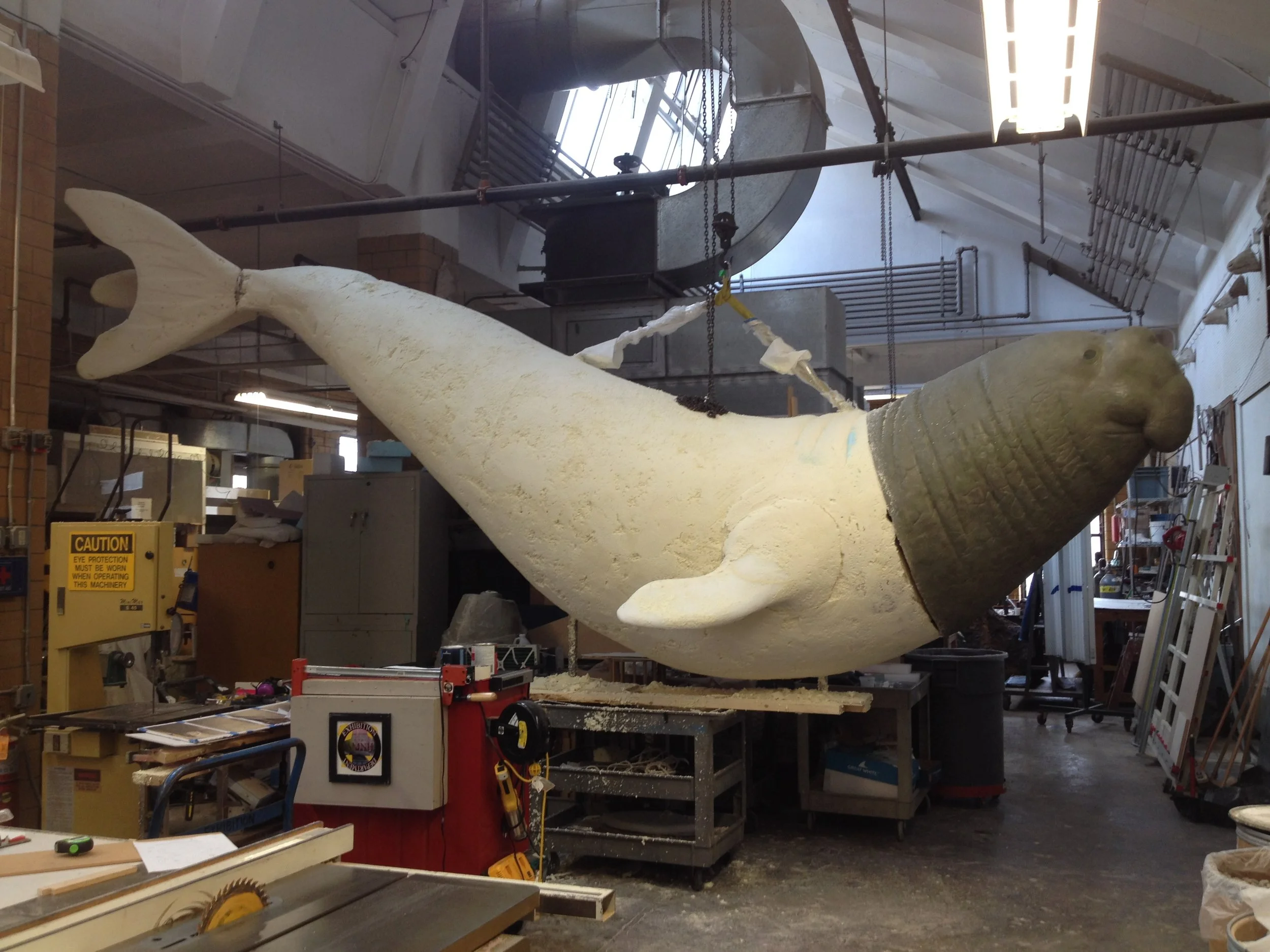

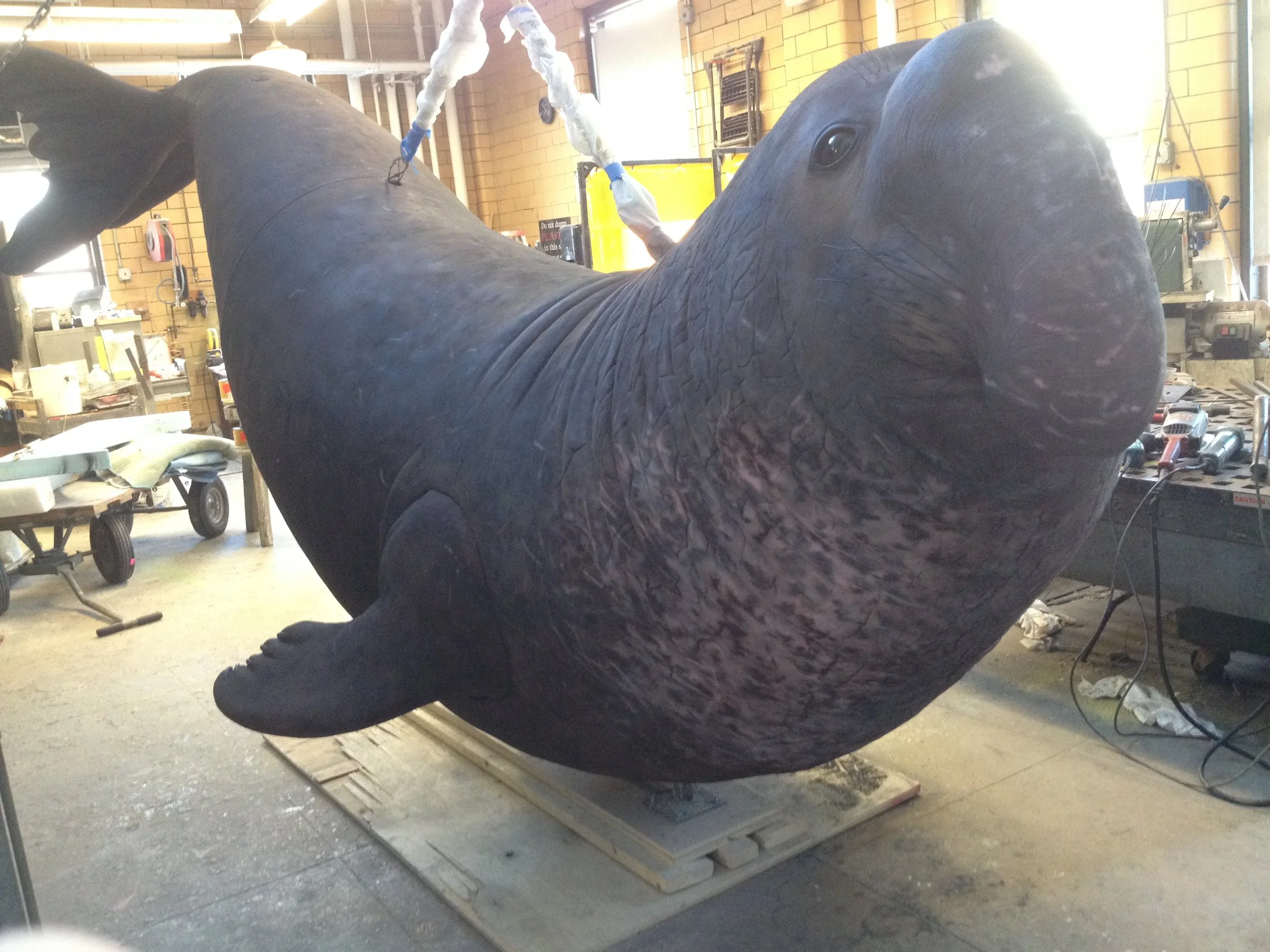

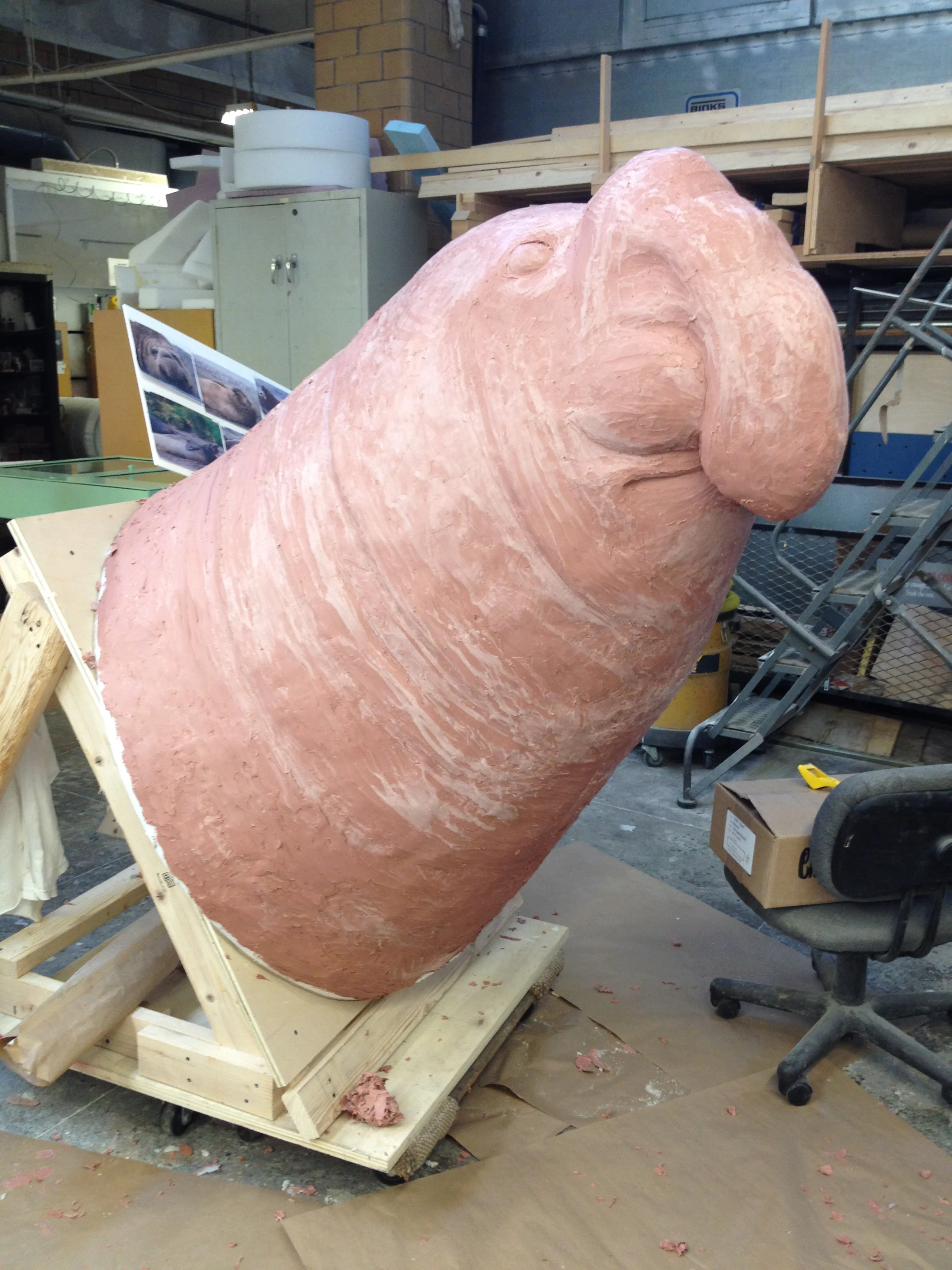

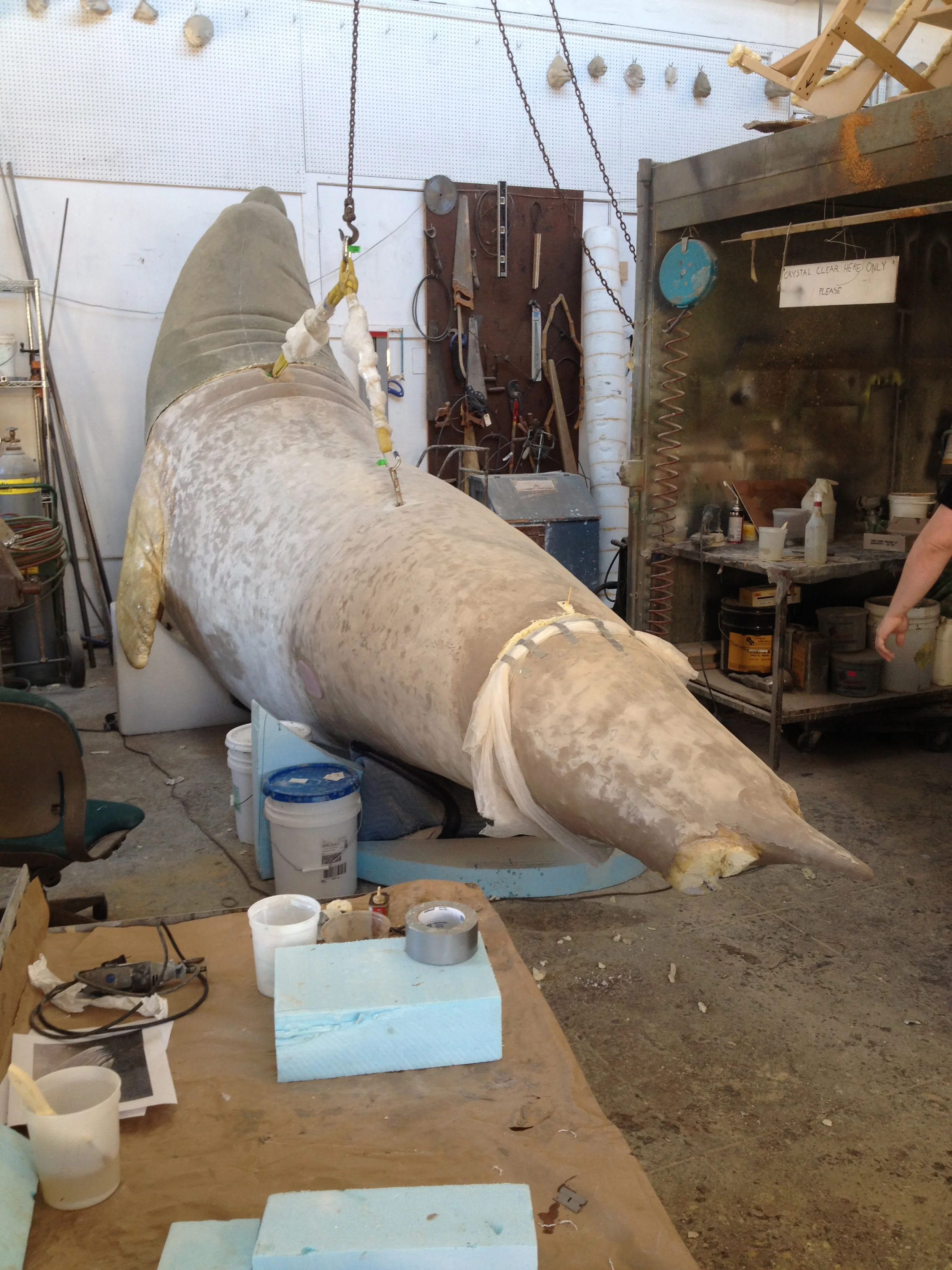

I made a 20ft long Mirounga leonina, or Elephant Seal for the Life At The Limits exhibit in 2015.  Starting with a clay scale model, I used a 3D scanner to help me map out the steel armature and wooden gussets I would construct.  Using chicken wire, foam, polyester resin, fiberglass, and epoxy, I fleshed out the body of the seal.  The head was sculpted in clay and cast in polyester resin.  The model comes apart for travel, and can be mounted on a post from the floor, or hung by two eye hooks on its back.

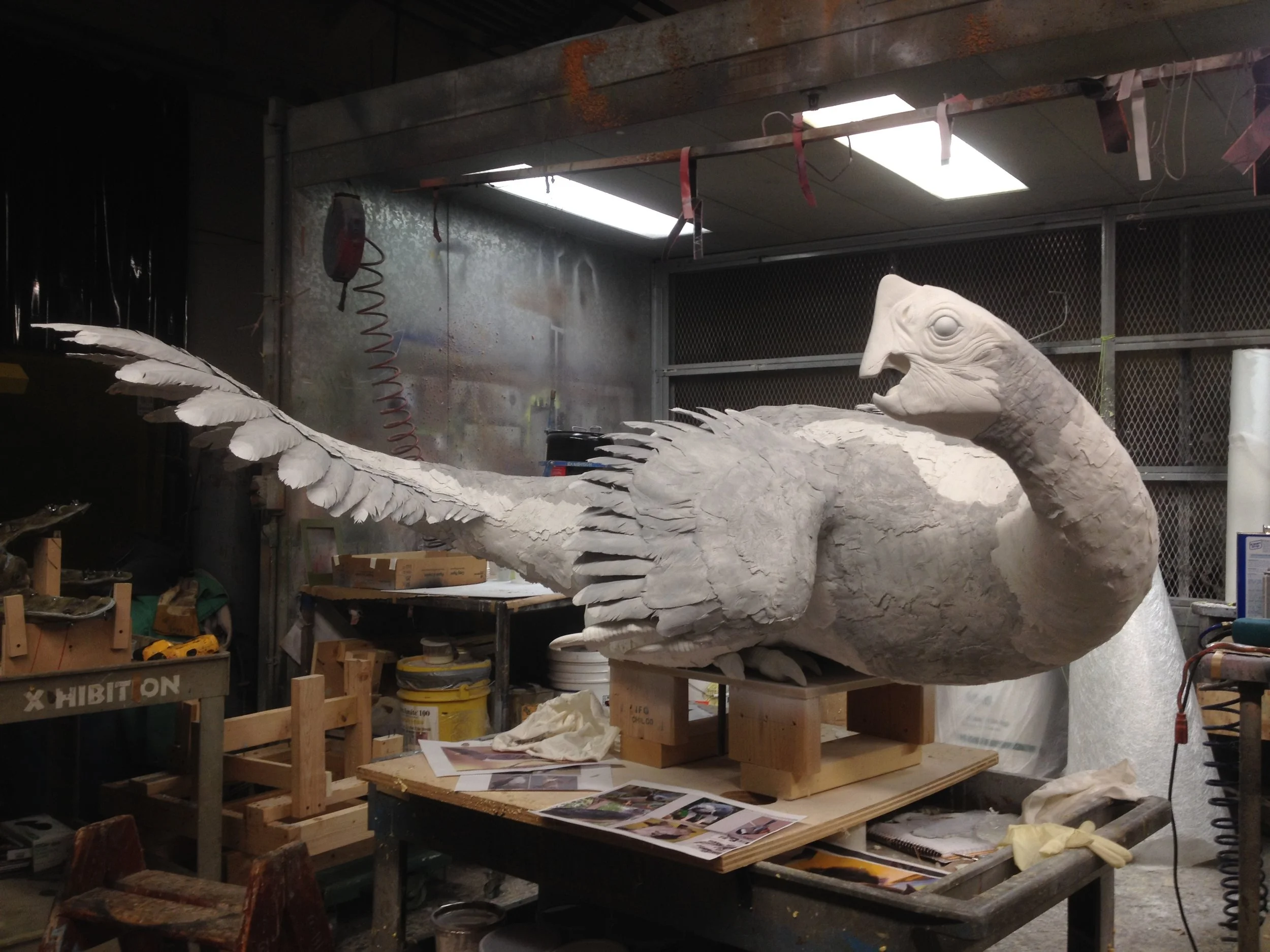

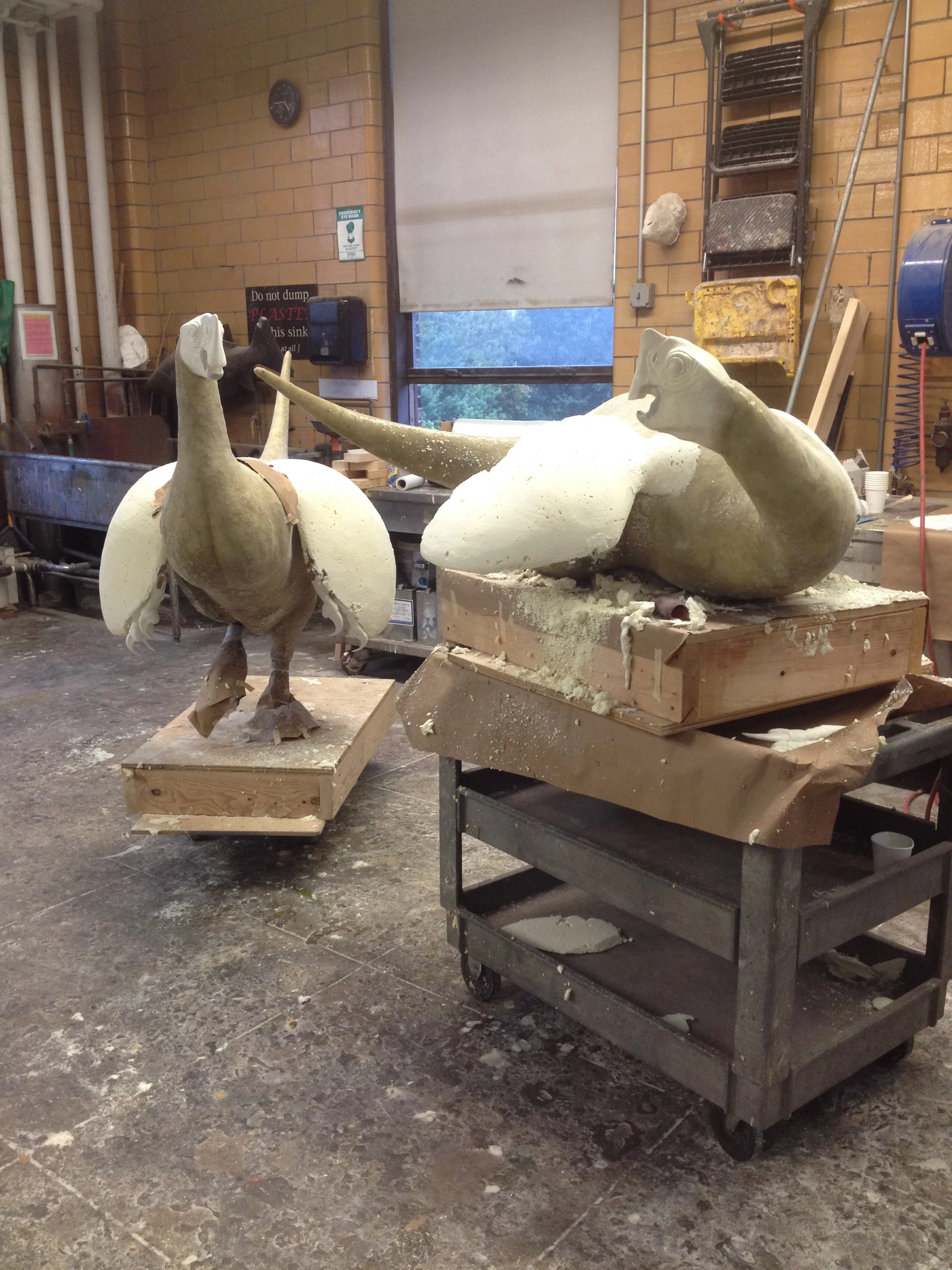

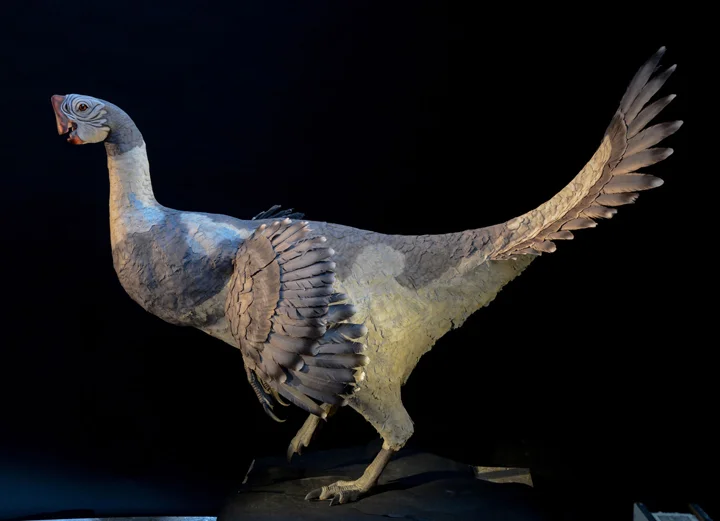

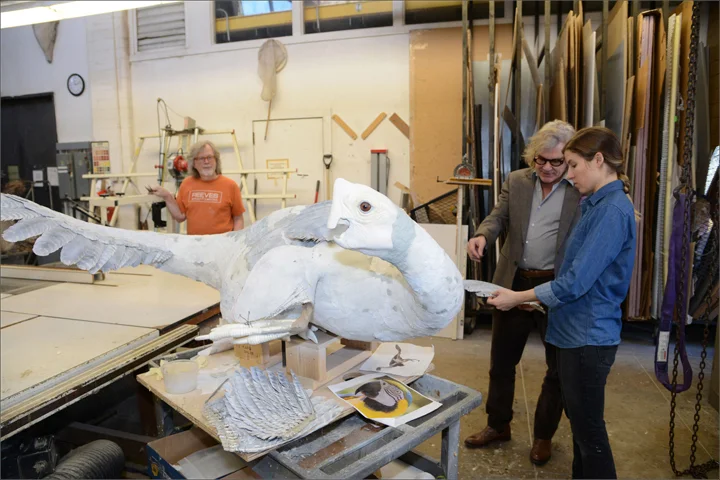

I created 2 male Citipati, a type of Oviraptorid from the Late Cretaceous period, for the Dinosaurs Among Us exhibit in 2016.  I started by welding together some steel armatures, coating the armatures with foam, fiberglassing the surfaces and then coating with a texture I made by casting varying arrangements of turkey feathers.

Dino Styling
Young Tyrannosaurus Rex
Xiongguanlong

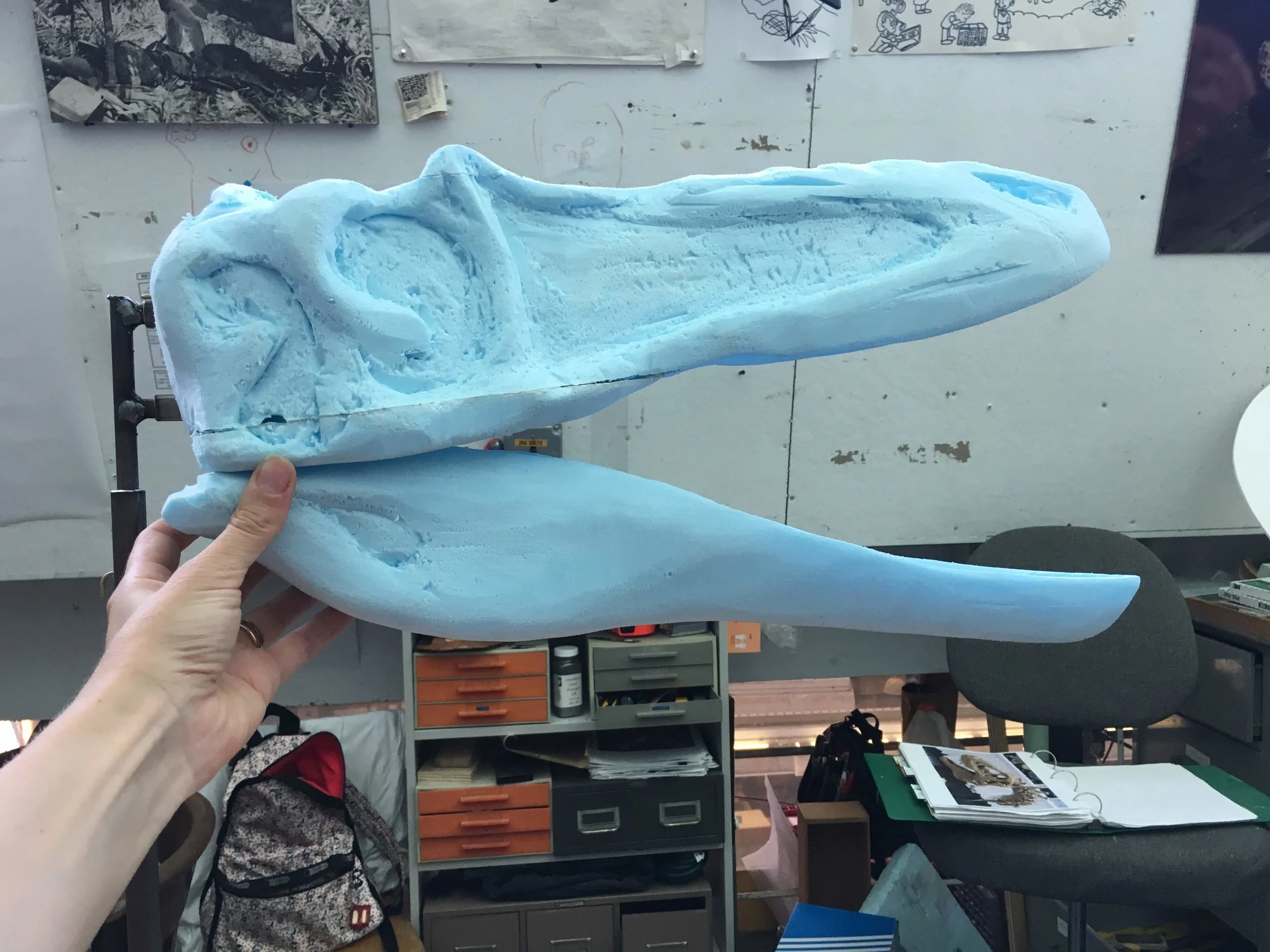

Blue Foam Skull

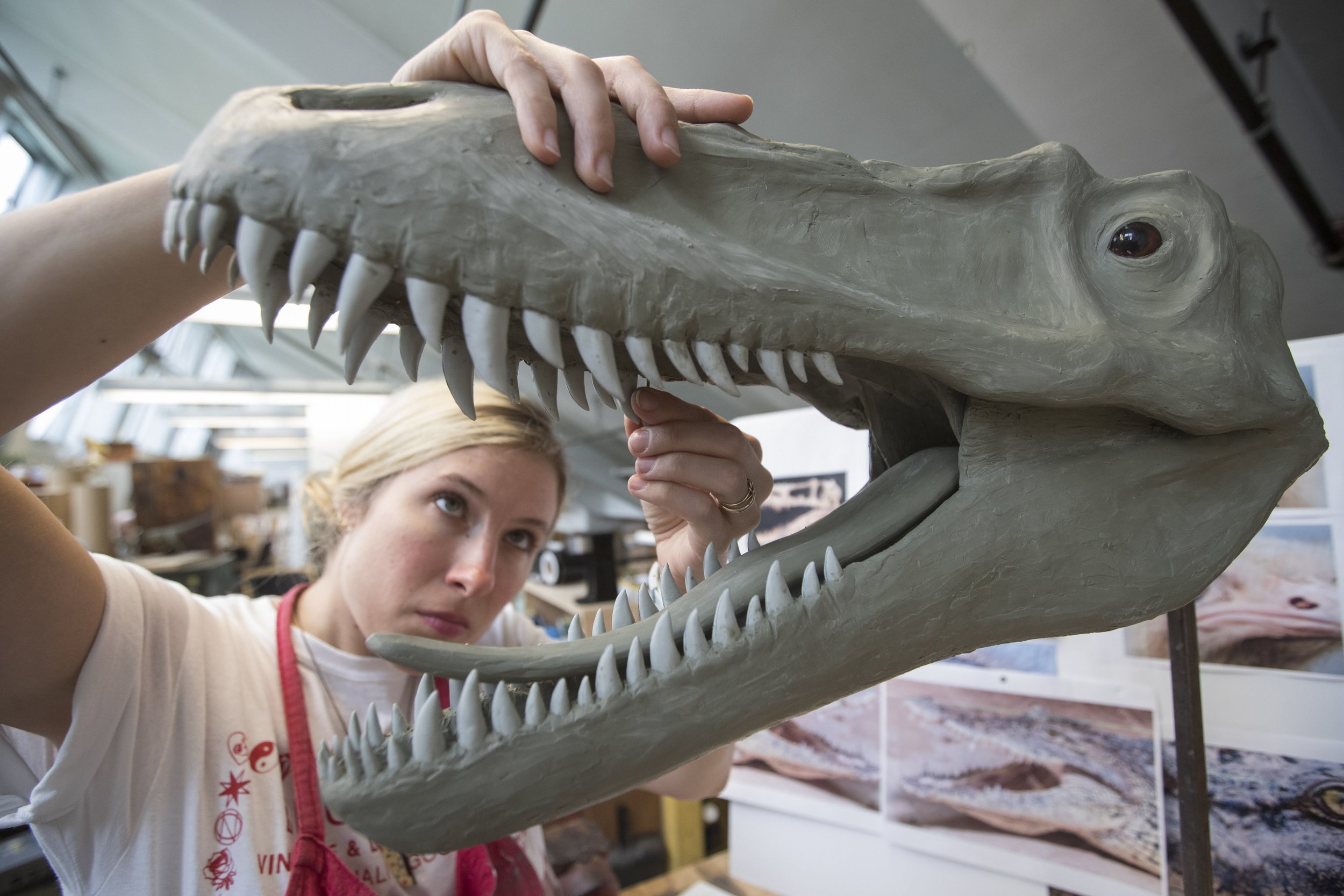

Working on the Head Sculpt
Baby Bob's Steel Armature
Foam Dinos

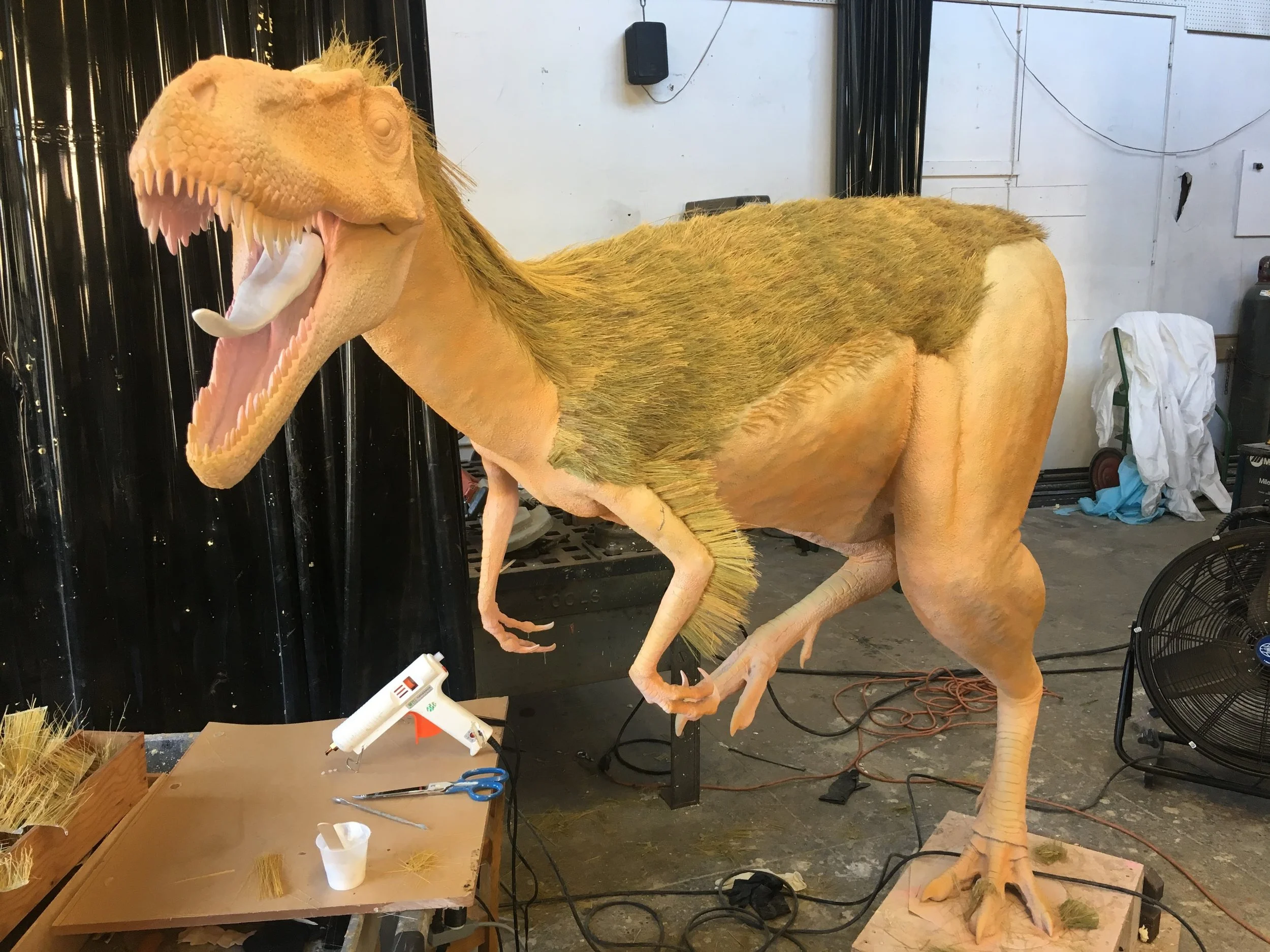

Xiongguanlong Feather Process

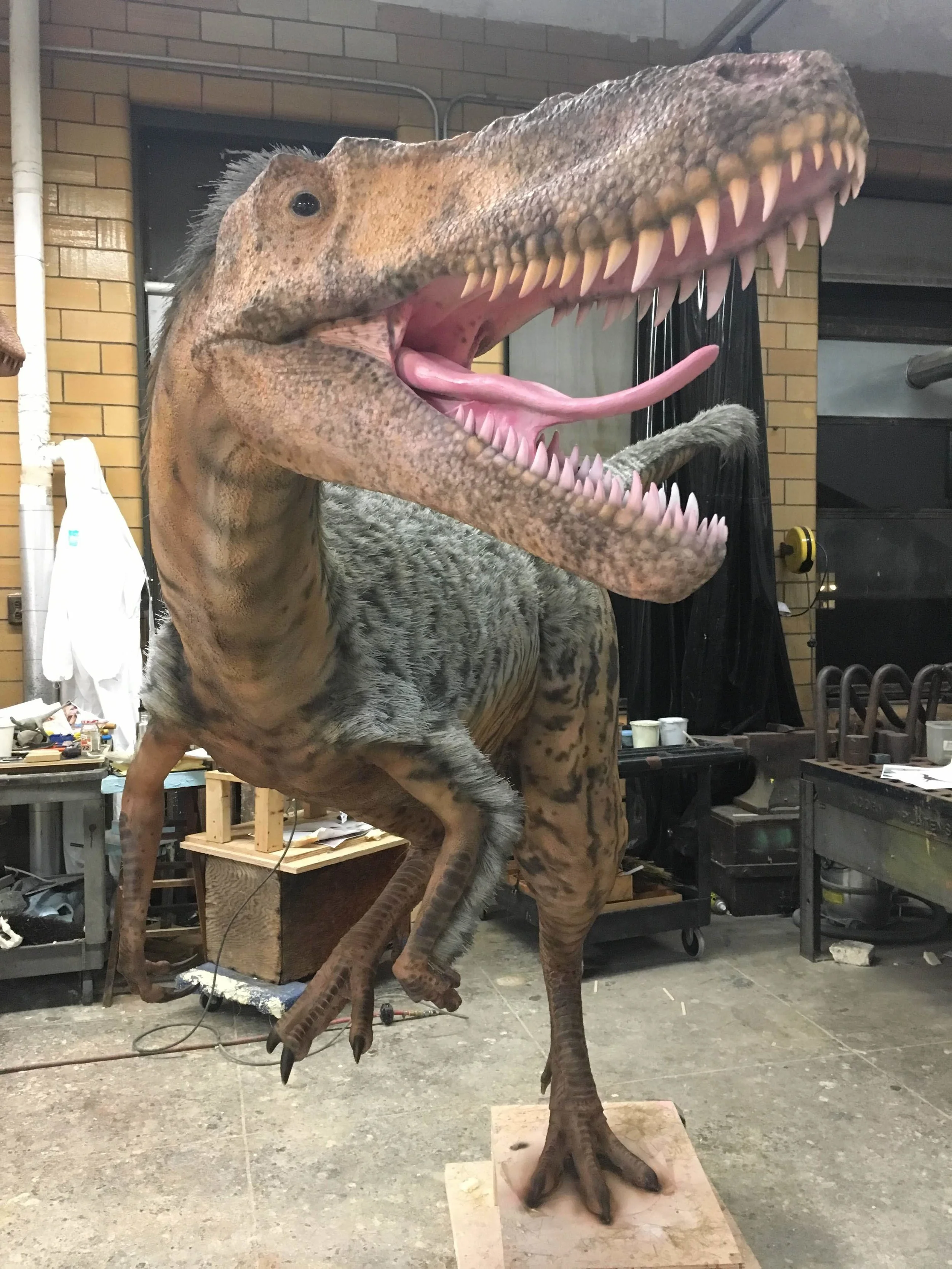

Xiongguanlong in the Shop
Model Shop StanLegPic.jpg

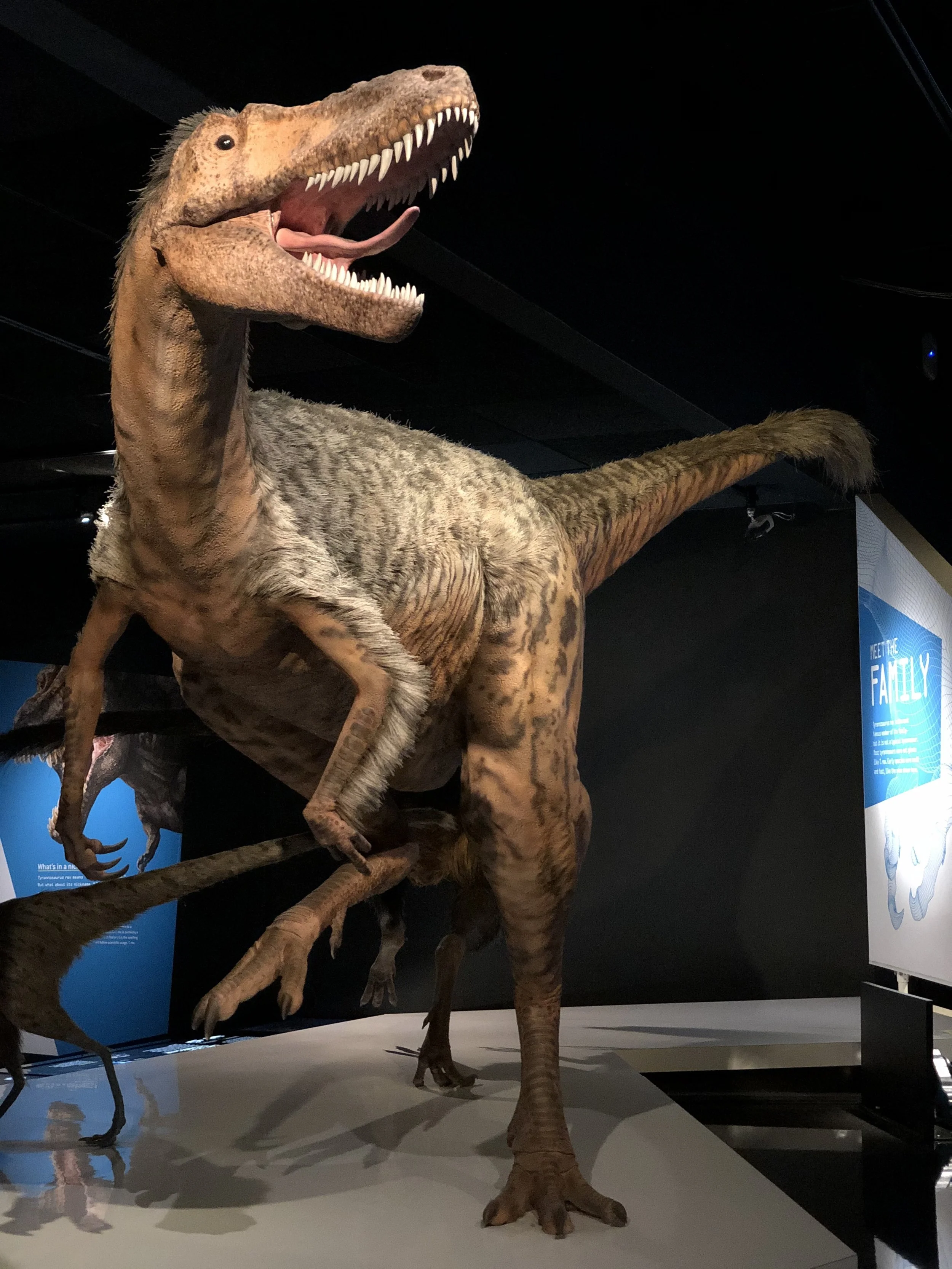

Xiongguanlong in the Gallery
